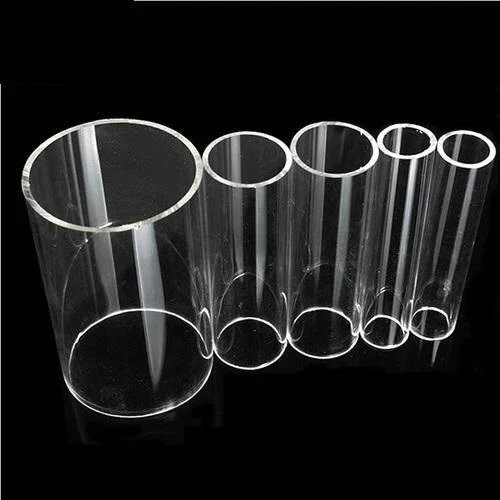

Acrylic Pipe
Our product range includes a wide range of Acrylic Glass Pipe, Acrylic Crystal Pipe, Acrylic Extruder Pipe, Plastic Acrylic Pipe and Acrylic Cast Pipe.
Acrylic Pipe
We are one of the most well-distinguished companies in the market that are into offering Acrylic Glass Pipe
|
Sl. No. |
Size – Outer Dia (in mm) |
Size – Inner Dia (in mm) |
Standard Length |
| 1 | 5.00 | 2.75 | 2 Meter |
| 2 | 6.00 | 3.00 | 2 Meter |
| 3 | 8.00 | 4.00 | 2 Meter |
| 4 | 10.00 | 6.00 | 2 Meter |
| 5 | 12.00 | 8.00 | 2 Meter |
| 6 | 13.00 | 10.00 | 2 Meter |
| 7 | 15.00 | 11.00 | 2 Meter |
| 8 | 18.00 | 12.00 | 2 Meter |
| 9 | 20.00 | 15.50 | 2 Meter |
| 10 | 25.00 | 20.00 | 2 Meter |
| 11 | 30.00 | 20.00 | 2 Meter |
| 12 | 30.00 | 25.00 | 2 Meter |
| 13 | 32.00 | 25.00 | 2 Meter |
| 14 | 35.00 | 25.00 | 2 Meter |
| 15 | 35.00 | 30.00 | 2 Meter |
| 16 | 38.00 | 25.00 | 2 Meter |
| 17 | 38.00 | 30.00 | 2 Meter |
| 18 | 38.00 | 32.00 | 2 Meter |
| 19 | 40.00 | 25.00 | 2 Meter |
| 20 | 40.00 | 30.00 | 2 Meter |
| 21 | 40.00 | 32.00 | 2 Meter |
| 22 | 43.00 | 33.00 | 2 Meter |
| 23 | 40.00 | 34.50 | 2 Meter |
| 24 | 45.00 | 39.20 | 2 Meter |
| 25 | 50.00 | 40.00 | 2 Meter |
| 26 | 50.00 | 44.00 | 2 Meter |
| 27 | 51.00 | 46.00 | 2 Meter |
| 28 | 55.00 | 49.00 | 2 Meter |
| 29 | 60.00 | 50.00 | 2 Meter |
| 30 | 60.00 | 54.00 | 2 Meter |
| 31 | 63.00 | 58.60 | 2 Meter |
| 32 | 70.00 | 64.00 | 2 Meter |
| 33 | 75.00 | 65.00 | 2 Meter |
| 34 | 75.00 | 69.00 | 2 Meter |
| 32 | 90.00 | 84.00 | 2 Meter |
| 33 | 100.00 | 90.00 | 2 Meter |
| 34 | 100.00 | 94.00 | 2 Meter |
| 35 | 105.00 | 95.00 | 2 Meter |
| 36 | 110.00 | 100.00 | 2 Meter |
| 37 | 110.00 | 104.00 | 2 Meter |
| 38 | 115.00 | 105.00 | 2 Meter |
| 39 | 115.00 | 109.00 | 2 Meter |
| 40 | 120.00 | 114.00 | 2 Meter |
| 41 | 125.00 | 119.00 | 2 Meter |
Interested in this product?

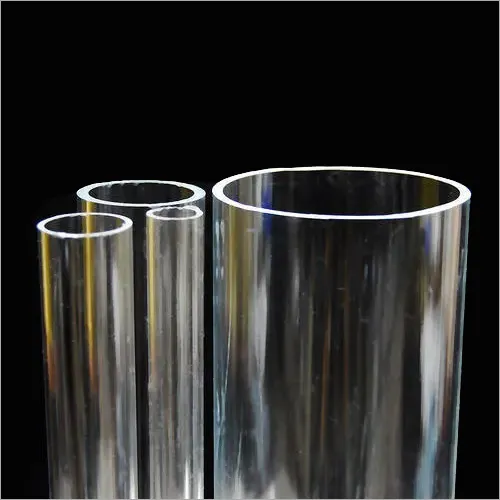

Acrylic Pipe Cast 600mm Length
Larger Acrylic Pipes are available in outer diametre sizes of 70, 75, 82, 90, 95, 100, 108, 110, 115, 120, 125, 130, 140, 150, 160, 190, 200, 250, or 310 mm with wall thickness values of 3, 4 or 5mm. Special sizes with outer diametre values 500, 600, or 650 mm and wall thickness values ranging anywhere from 6 mm to 10 mm can also be supplied on clients’ request. The rates are calculated per 600 mm length depending upon the O. D. size, the wall thickness of the specific pipe. We also offer special rates on per metre length basis for pipes with outer diametre values of 75 and 100 mm.
|
Sl. No. |
Size In mm O.D. |
ID (Wall Thickness of 3mm) |
ID (Wall Thickness of 4mm) |
ID (Wall Thickness of 5mm) |
| 1 | 70 | 64 | 62 | 60 |
| 2 | 75 | 69 | 67 | 65 |
| 3 | 82 | 76 | 74 | 72 |
| 4 | 90 | 84 | 82 | 80 |
| 5 | 95 | 89 | 87 | 85 |
| 6 | 100 | 94 | 92 | 90 |
| 7 | 108 | 102 | 100 | 98 |
| 8 | 110 | 104 | 102 | 100 |
| 9 | 115 | 109 | 107 | 105 |
| 10 | 120 | 114 | 112 | 110 |
| 11 | 125 | 119 | 117 | 115 |
| 12 | 130 | 124 | 122 | 120 |
| 13 | 140 | 134 | 132 | 130 |
| 14 | 150 | 144 | 142 | 140 |
| 15 | 160 | 154 | 152 | 150 |
| 16 | 165 | — | 157 | 155 |
| 17 | 180 | — | 172 | 170 |
| 18 | 190 | — | 182 | 180 |
| 19 | 200 | — | 192 | 190 |
| 20 | 250 | — | 242 | 240 |
| 21 | 300 | — | 292 | 290 |
| 22 | 310 | — | 302 | 300 |
| 23 | 343 | — | — | 333 |
| 24 | 360 | — | — | 350 |
| 25 | 375 | — | — | 365 |
| 26 | 400 | — | — | 390 |
| 27 | 450 | — | — | 440 |
| 28 | 500 | — | — | 490 |
